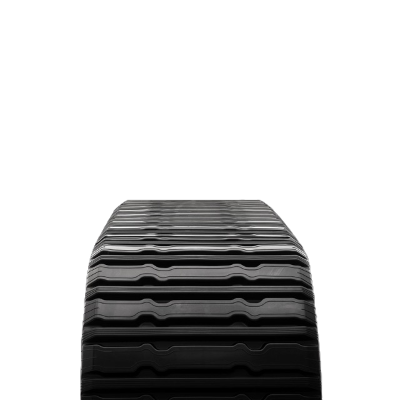

MTL HXD
Enhanced durability and protection
The multi-terrain loader solution for longer track life and better protection against drive lug failure. Increased durability combined with lateral stability minimizes operating costs by adding an extra season of service on the job site.
| Part Number | PID | Width | Pitch | Length | Tread pattern | Carcass Thickness | Lug Height | Weight |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kg | |||
| 190.199.237 | ||||||||
| 190.199.239 | ||||||||
| 190.199.238 | ||||||||
| 190.199.307 | ||||||||
| 190.199.236 | ||||||||
| 639-1500 | 105.2714.8688 | 381 | 101.6 | 4216 | MTL1 | 21.3 | 20.3 | 79.8 |
| 639-1830 | 105.2715.8689 | 457 | 101.6 | 5080 | MTL2 | 21.3 | 20.3 | 118.8 |
| 639-1831 | 105.2717.8691 | 457 | 101.6 | 5105 | MTL2 | 21.3 | 20.3 | 134.7 |
| 639-1832 | 105.2716.8690 | 457 | 101.6 | 5588 | MTL2 | 21.3 | 20.3 | 131.1 |
