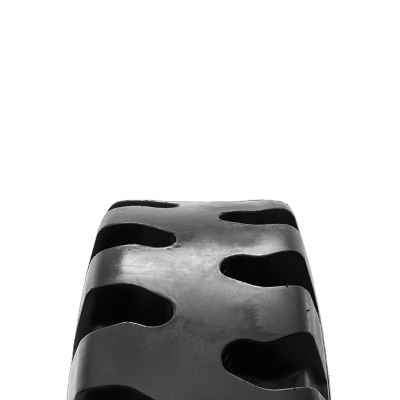

Camso WHL 775 Bias
A premium wheel loader tire durability solution
A tough and durable L5 bias wheel loader tire built with durability in mind to overcome heavy-duty hard surface applications
| Tire size | PR | Rim Size | Rim Diameter | Actual Tire Dimensions | Service | Load Index | Speed Symbol | TRA Code | Maximum Tire Load | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Recommended | Alternative | Overall Diameter | Overall Width | Original Tread Depth | Inflation Pressure | Static | Creep | 5 km/h | 10 km/h | 15 km/h | 20 km/h | 25 km/h | 30 km/h | 35 km/h | 40 km/h | 50 km/h | |||||||
| mm | mm | mm | bar | kg | kg | kg | kg | kg | kg | kg | kg | kg | kg | kg | |||||||||
| 17.5-25 | 16 | 14.00/1.5 | 14.00/1.3 (DC) | 25.00 | 1402.1 | 447 | 61.9 | LOADER - DOZER | 177 | A2 | L-5 | 4.8 | 11700.4 | 9500.5 | 8300.7 | 7300.6 | 6350.3 | 6150.7 | 5849.1 | 5599.6 | 5400 | 5100.6 | 4599.4 |
| 20.5-25 | 20 | 17.00/2.0 | - | 25.00 | 1562.1 | 530.9 | 77 | LOADER - DOZER | 186 | A2 | L-5 | 4.5 | 15199.9 | 12398.9 | 10800 | 9500.5 | 8250.8 | 7999.1 | 7599.9 | 7300.6 | 7051.1 | 6649.7 | 5985.1 |
| 23.5-25 | 20 | 19.50/2.5 | - | 25.00 | 1668.8 | 596.9 | 88.1 | LOADER - DOZER | 191 | A2 | L-5 | 3.7 | 17399.8 | 14199.7 | 12398.9 | 10899.8 | 9500.5 | 9149 | 8699.9 | 8400.5 | 8049 | 7649.8 | 6865.1 |
| 26.5-25 | 28 | 22.00/3.0 | - | 25.00 | 1798.3 | 675.6 | 92.1 | LOADER - DOZER | 203 | A2 | L-5 | 4.8 | 24800.1 | 20200.7 | 17699.2 | 15499.2 | 13498.9 | 12999.9 | 12398.9 | 11900 | 11498.6 | 10899.8 | 9765.8 |
