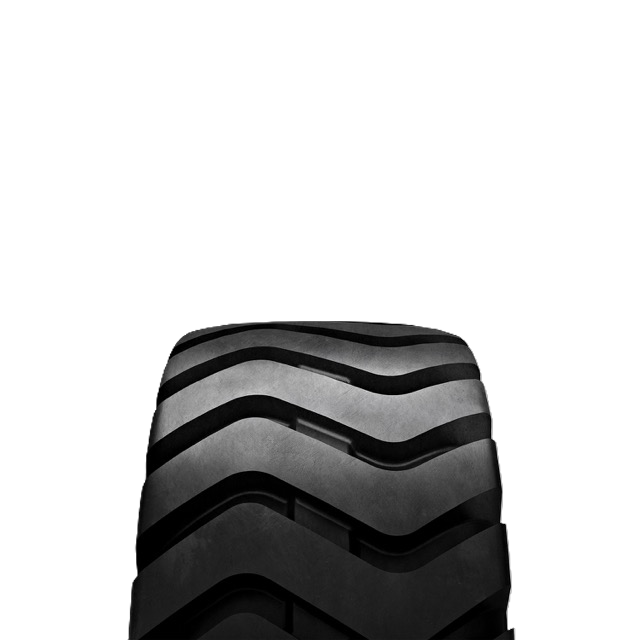

Camso WHL 773 Bias
Reliable performance in harsh applications
Provides reliable performance on any surface. Brings chipping and chunking resistance as well as stability to abrasive and rocky settings.
| Tire size | PR | Rim Size | Rim Diameter | Actual Tire Dimensions | Service | Load Index | Speed Symbol | TRA Code | Maximum Tire Load | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Recommended | Alternative | Overall Diameter | Overall Width | Original Tread Depth | Inflation Pressure | 15 km/h | 20 km/h | 25 km/h | 30 km/h | 35 km/h | 40 km/h | 50 km/h | 55 km/h | 60 km/h | 65 km/h | |||||||
| mm | mm | mm | bar | kg | kg | kg | kg | kg | kg | kg | kg | kg | kg | |||||||||
| 20.5-25 | 20 | 17.00/2.0 | - | 25.00 | 1488.4 | 541 | 27.8 | EARTHMOVER | 170 | B | E-3 | 3.2 | 6720 | 6599.8 | 6479.6 | 6359.4 | 6239.2 | 6180.2 | 6001 | 5799.2 | 5499.8 | 4975.9 |
| 26.5-25 | 28 | 22.00/3.0 | - | 25.00 | 1745 | 683.3 | 37.3 | EARTHMOVER | 188 | B | E-3 | 3.5 | 11199.2 | 10999.6 | 10800 | 10600.4 | 10400.9 | 10301.1 | 9999.4 | 9700.1 | 9201.1 | 8300.7 |
