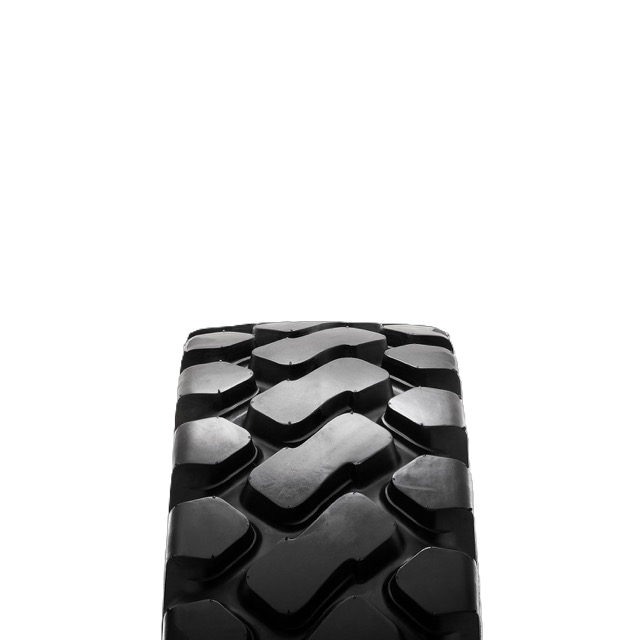

Camso LM L3 Bias
Multi-surface performance
Delivers optimized performance on all surfaces. With enhanced side impact resistance and improved stability, it reduces flats and improves ride quality in all types of applications.
| Tire size | PR | Rim Size | Rim Diameter | Actual Tire Dimensions | Service | Load Index | Speed Symbol | TRA Code | Maximum Tire Load | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Recommended | Alternative | Overall Diameter | Overall Width | Original Tread Depth | Inflation Pressure | 15 km/h | 20 km/h | 25 km/h | 30 km/h | 35 km/h | 40 km/h | 50 km/h | 55 km/h | 60 km/h | 65 km/h | |||||||
| mm | mm | mm | bar | kg | kg | kg | kg | kg | kg | kg | kg | kg | kg | |||||||||
| 20.5-25 | 16 | 17.00/2.0 | 17.00/1.7 | 25.00 | 1503.7 | 546.1 | 31.8 | EARTHMOVER | 167 | B | E-3 | 2.8 | 6100.8 | 6001 | 5899 | 5799.2 | 5649.5 | 5599.6 | 5449.9 | 5300.2 | 5000.9 | 4524.6 |
| 20.5-25 | 20 | 17.00/2.0 | - | 25.00 | 1503.7 | 543.6 | 31 | EARTHMOVER | 170 | B | E-3 | 3.2 | 6720 | 6599.8 | 6479.6 | 6359.4 | 6239.2 | 6180.2 | 6001 | 5799.2 | 5499.8 | 4975.9 |
| 26.5-25 | 20 | 22.00/3.0 | - | 25.00 | 1752.6 | 690.9 | 39.7 | EARTHMOVER | 181 | B | E-3 | 2.5 | 9251 | 9099.1 | 8899.5 | 8749.8 | 8600.1 | 8500.3 | 8250.8 | 7999.1 | 7599.9 | 6849.2 |
| 26.5-25 | 28 | 22.00/3.0 | - | 25.00 | 1752.6 | 693.4 | 38.9 | EARTHMOVER | 188 | B | E-3 | 3.5 | 11199.2 | 10999.6 | 10800 | 10600.4 | 10400.9 | 10301.1 | 9999.4 | 9700.1 | 9201.1 | 8300.7 |
| 29.5-25 | 28 | 25.00/3.5 | - | 25.00 | 1872 | 769.6 | 35.7 | EARTHMOVER | 193 | B | E-3 | 3.2 | 12879.7 | 12650.7 | 12419.3 | 12190.3 | 11959 | 11845.6 | 11500.8 | 11156.1 | 10580 | 9545.8 |
